Exterior wall with facing brickwork
AGEPAN® SYSTEM products as panelling behind the front rear-ventilated faced brickwork where they are used either as stiffening elements with AGEPAN® DWD protect or as additional thermal insulation with AGEPAN® THD T+G or AGEPAN® UDP T+G.

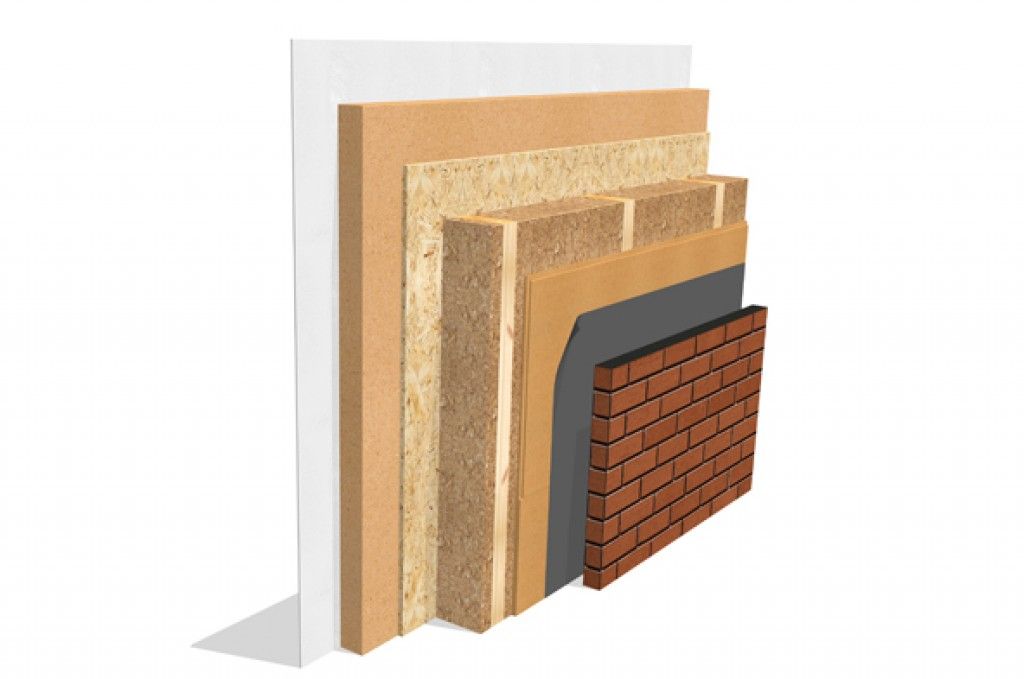

Construction example
| Construction Example | Product | Nominal Thickness (mm) |
|---|---|---|
| Inside | Gypsum board | ≥ 12,5 |
| AGEPAN® THD Install | ≥ 40 | |
| AGEPAN® OSB 3 Ecoboard | ≥ 15 | |
| Solid construction timber | ≥ 60 x 140 | |
| AGEPAN® Flex | ≥ 140 | |
| AGEPAN® DWD protect | 16 | |
| Water-repellent facade membrane and rear ventilation according to DIN 68800-2 | ||
| Outside | Faced brickwork |
| Inside | |
|---|---|
| Product | Gypsum board |
| Thickness | ≥ 12,5 |
| Product | AGEPAN® THD Install |
| Thickness | ≥ 40 |
| Product | AGEPAN® OSB 3 Ecoboard |
| Thickness | ≥ 15 |
| Product | Solid construction timber |
| Thickness | ≥ 60 x 140 |
| Product | AGEPAN® Flex |
| Thickness | ≥ 140 |
| Product | AGEPAN® DWD protect |
| Thickness | 16 |
| Product | Water-repellent facade membrane and rear ventilation according to DIN 68800-2 |
| Thickness | |
| Product | Faced brickwork |
| Thickness | |
| Outside |
Construction example. Details, exact dimensions and thicknesses can be found in the respective test certificates, standards and building regulations. Please observe the processing instructions.
System’s components
AGEPAN® DWD PROTECT
The original. Stable, stiffening and load-bearing planking in roof and wall.
KNOW MORE
AGEPAN® THD T+G
Perfect insulation: Extremely pressure-resistant due to the asymmetrical raw density profile.
KNOW MORE
AGEPAN® THD INSTALL
Installation level or pressure-resistant interior insulation in roof and wall areas.
KNOW MORE
AGEPAN® OSB 3 ECOBOARD®
The load-bearing panel. For universal use in timber frame constructions.
KNOW MORE
AGEPAN® UDP T+G
The stable sarking board. Thermal-insulating and soundabsorbing in roof and wall.
KNOW MORE
